Righetti VB4+4 RCMBMGlass vacuum lifters

The Righetti VB4+4 RCMBM is one of our best-selling glass vacuum lifters. The Righetti VB4+4 features external suction cups mounted on removable extension arms, increasing lifting capacity and spread of the suction units.

Lifting capacity (standard / optional)400/800 kg (D4: 600/1200 kg)
Number of suction units8
Diameter fixed suction pads (standard / optional)310 mm (D4: 390 mm)
Pad size 4 pad configuration (standard / optional)863 × 666 mm (D4: 1020 × 795 mm)
Pad size 8 pad configuration (standard / optional)1700 × 1210 mm / 2145 × 1488 mm (D4: 1780 × 1290 mm / 2250 × 1600 mm)
TiltingManual 90° with automatic stop
RotationManual 360° with automatic stop or continuous rotation
Power supplyBattery powered
Vacuum circuitDouble (EN13155)

WIDE RANGE

TOP BRANDS

GOOD SERVICE

Compact and versatile

Compact and versatile

Thanks to its compact and flat design, the Righetti VB4+4 RCMBM can even be used behind scaffolding. The extra suction units can be removed quickly and easily, making the machine easily adaptable for different situations on the construction site.

Get in touch
Flexible configuration for any glass project

Flexible configuration for any glass project

With four fixed suction cups and four extension arms, you benefit from maximum lifting capacity and optimal spread of suction units. Manual tilting and rotation with automatic stop make precision work simple and safe.

Get in touch

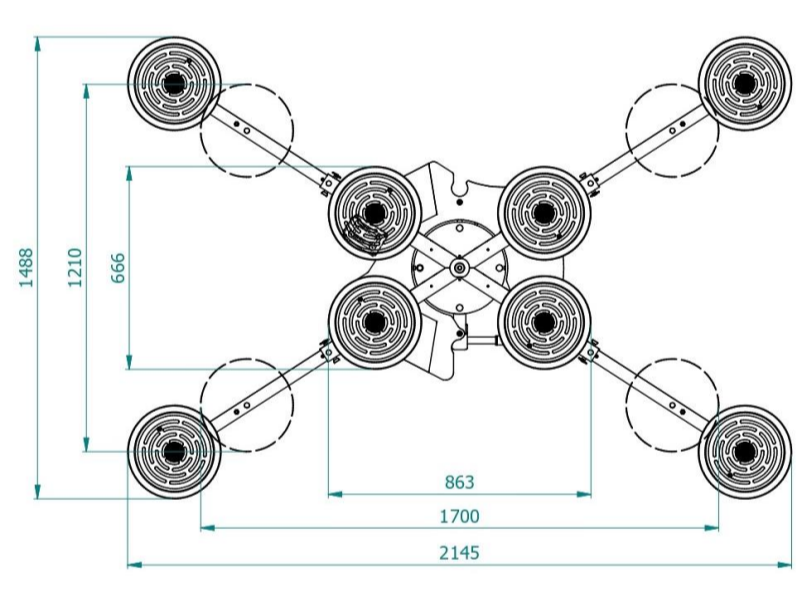

Technische tekening 1

Righetti VB4+4 RCMBM in beeld
