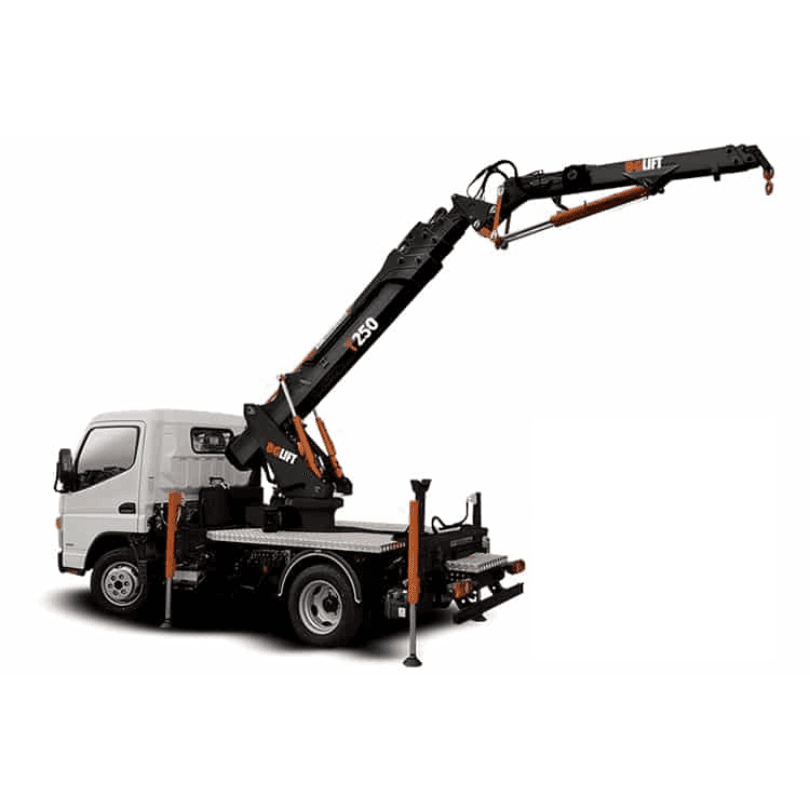

Bg Lift T250Auto Crane
The Bg Lift T250, mounted on an Isuzu Ground M21, offers a combination of compactness and lightweight construction.

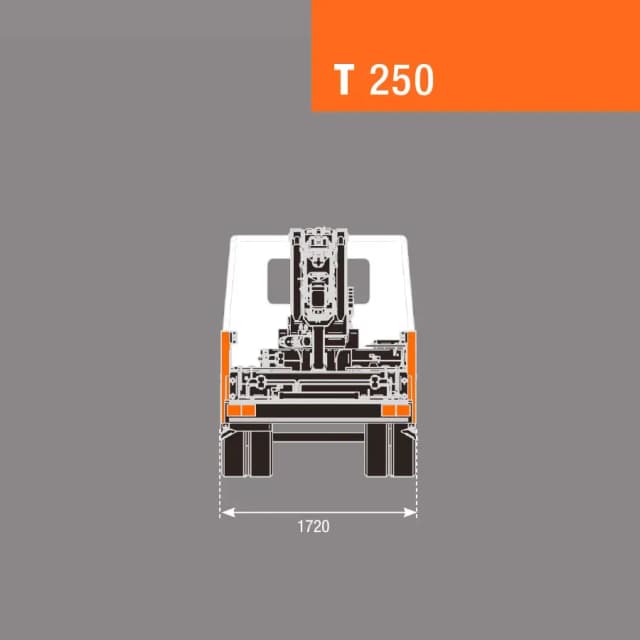

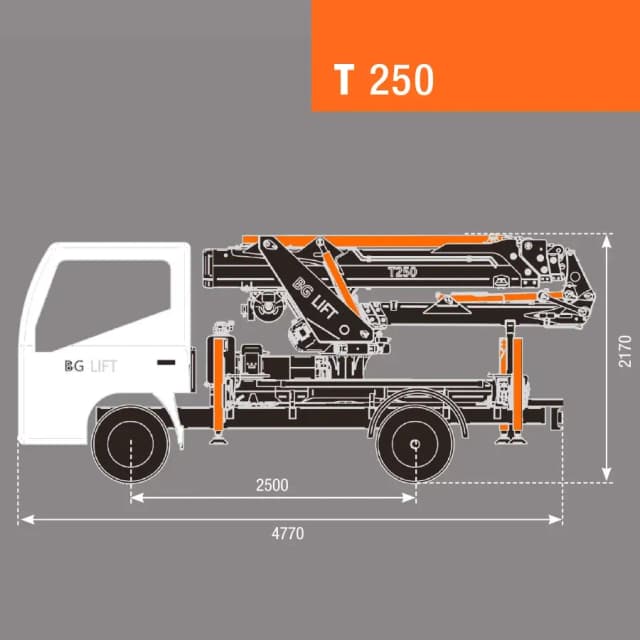

Dimensions (h×w×l)2.17 × 1.72 × 4.77 m
Weight3,100 kg

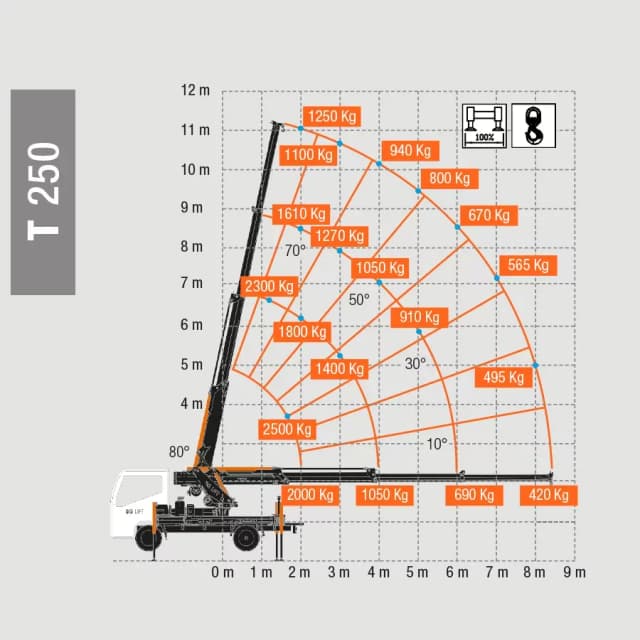

Lifting capacity2,500 kg
Max. lifting height 16.30 m
Horizontal reach12.85 m
Max. working range (below ground)-62.5 mDownloads
Optionally available with
Hydraulic fly jib
230 volt inverter electric motor
Hydraulic 900 kg winch incl. pulleys to end of jib
Adjustable 30° section
4 support plates 400x400x40mm with 2 storage boxes
Automatic folding of the crane
Storage box
Custom colors in company livery
Lower adjustable hook connection for main boom
Lower adjustable hook connection for the jib
2 LED lamps mounted on the mast
SSC – Smart Stability Control
1 person work basket, fixed
2 person work basket, fixed
2 person work basket, manually rotatable
2 person work basket, hydraulically rotatable

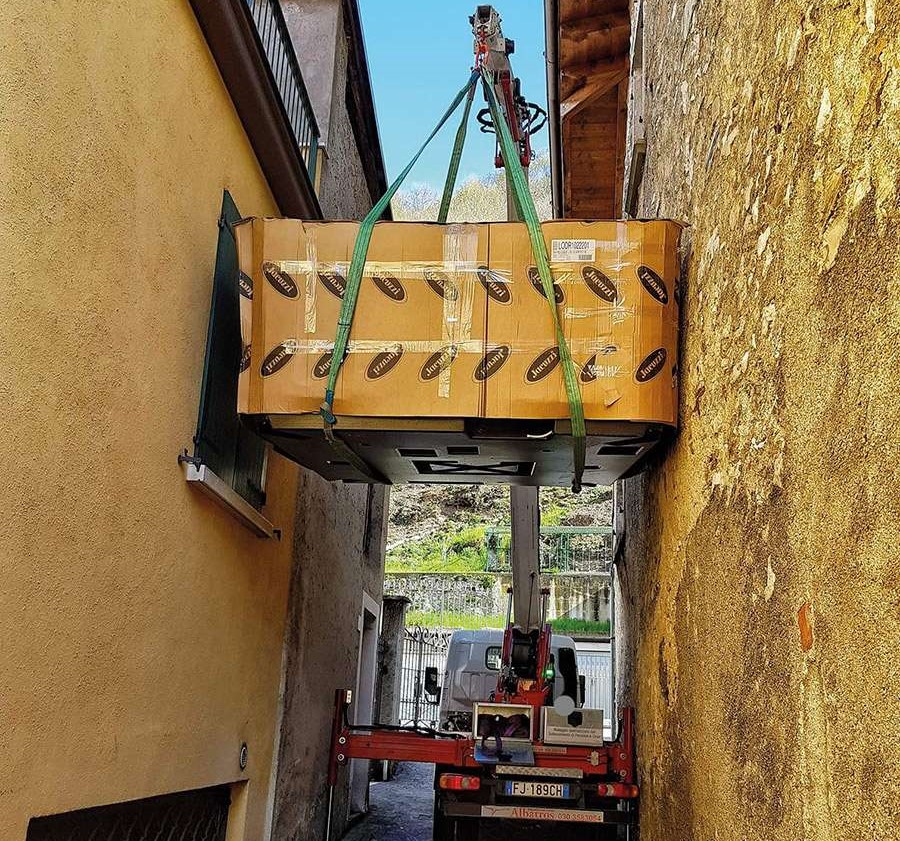

Compact and mobile auto crane
Thanks to its compact dimensions and precision controls, the BG Lift T250 allows even the most complex tasks to be performed with ease.

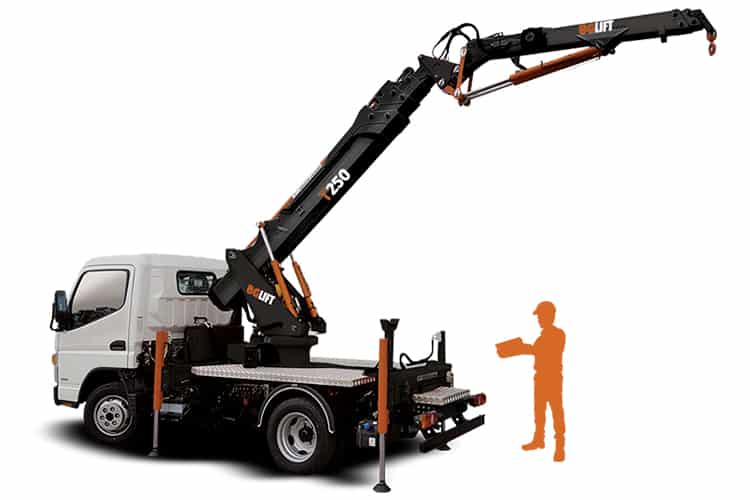

Versatility and Precision
The BG Lift T250 combines compact size with a powerful 2,500 kg lifting capacity and a maximum lifting height of 16.3 meters. Perfect for operations in locations with limited space or where precision is crucial.
