BG LIFT M400 mini CRANE SALES

back to the overview



Max. 4.000 kg



21,1 meter



17 meter

Download brochure

Get in touch with us

Standard version

Engine: Yanmar Diesel
Double pump: 200 bar
Transport width: 1.28 m
Transport length: 4.25 m
Transport height: 1.96 m
Transport speed: Approx. 2 km / h
Load moment protection: Electric
Max. capacity: 4000 kg
Own weight: 4300 kg
Highest lifting point: 21.1 m

Available from: € 99.500,-

request a quote

Always available
Fast delivery time

Warranty
Customer service

Description

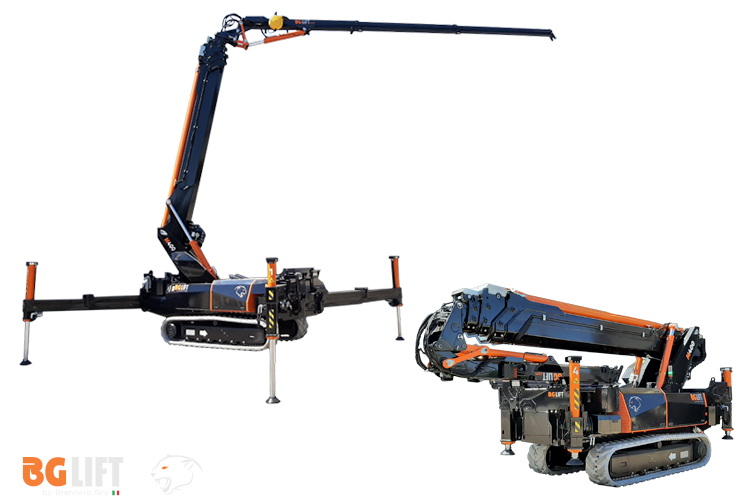

The Sankoo Bg Lift M400 is a unique Pick and Carry mini crane. A compact crane of which the power/weight ratio has never been seen before. The crossbars provide advanced stabilization. This compact crane is equipped with the most innovative technologies.

The maximum capacity of the crane is no less than 4000 kg. In addition, the Sankoo Bg Lift M400 has a maximum lifting height of 21.10m (including Jib) and a working range of 17.00m (including Jib). This compact crane is easy to transport because it is foldable to 4250 x 1280 x 1960 mm.

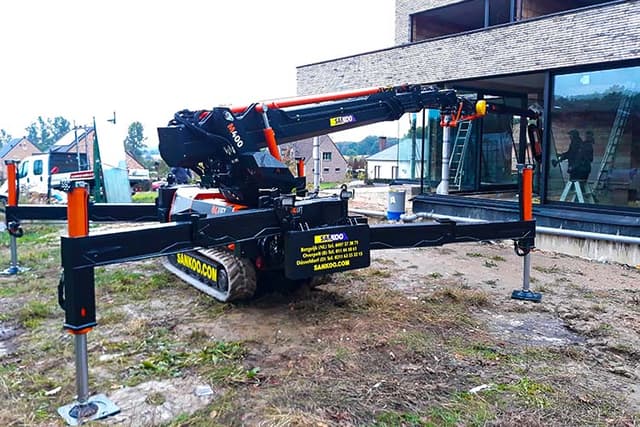

The Sankoo Bg Lift The M400 is equipped with advanced crossbars which guarantee the stability. The Sankoo BgLift M400 can be equipped with a Diesel or an Electric motor and is therefore suitable for both indoor and outdoor use. Operation is done by means of a radio remote control with display, so that the crane functions can be operated with millimetre accuracy.

Optional

Hydraulic jib J150C
Hydraulic pump with 400 V inverter motor
Hydraulic winch 1000 kg
Non-marking tracks
LED lamps on main boom

4 stamp plates with holder
2-man basket
Pick & Carry version 1,600 kg.
Adapted to your company color

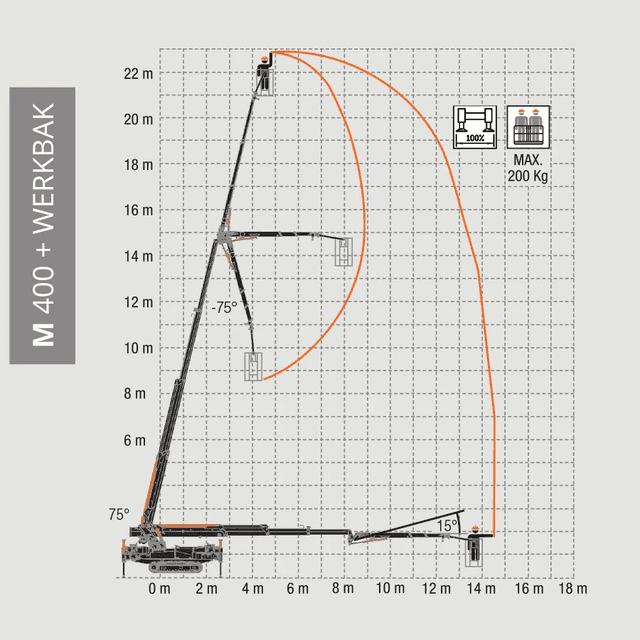

Aerial Work Platform and minicrane in one?

The innovative Mini Crane brand Bg Lift makes that possible.

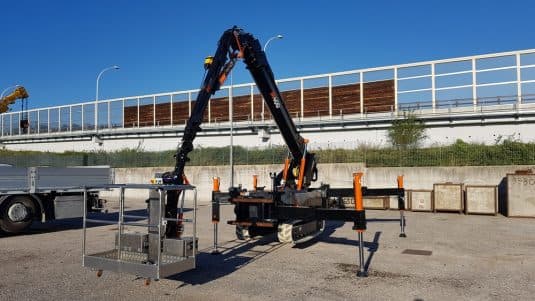

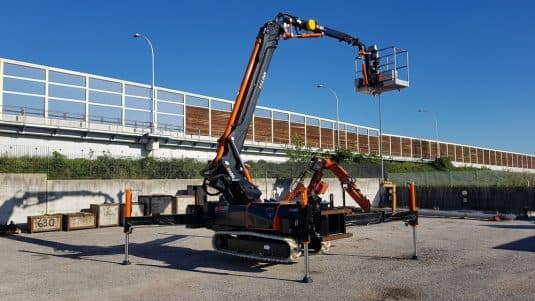

All models can (optionally) be equipped with a 2 person basket. This allows you to combine a mini crane and aerial platform in one machine.

These compact cranes are designed with EN280 approval. This is a unique feature of these mini cranes. Not investing in 2 machines but in 1. Who wouldn’t want that?
