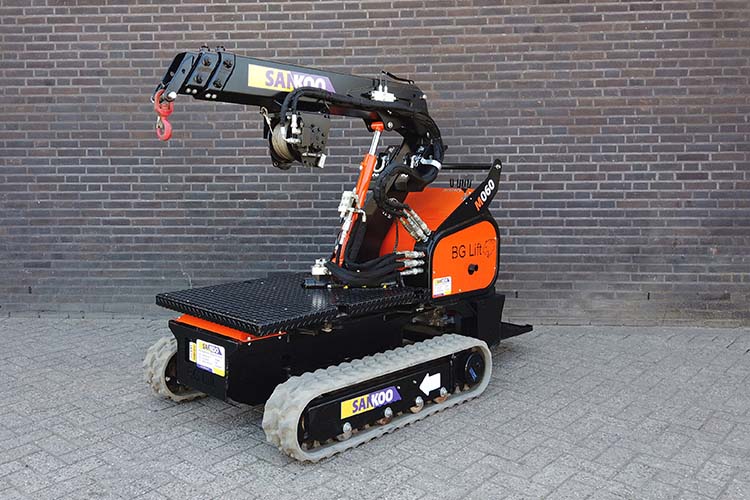

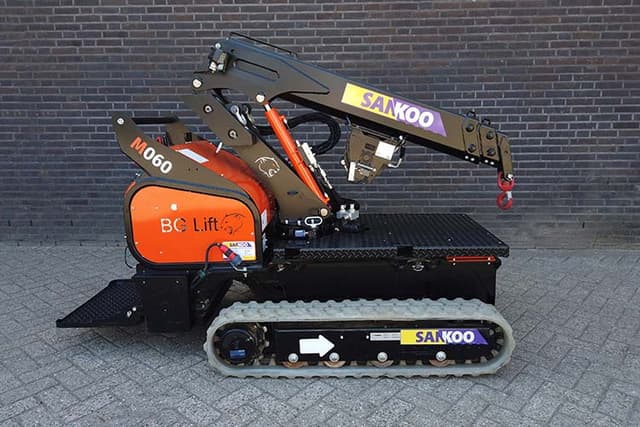

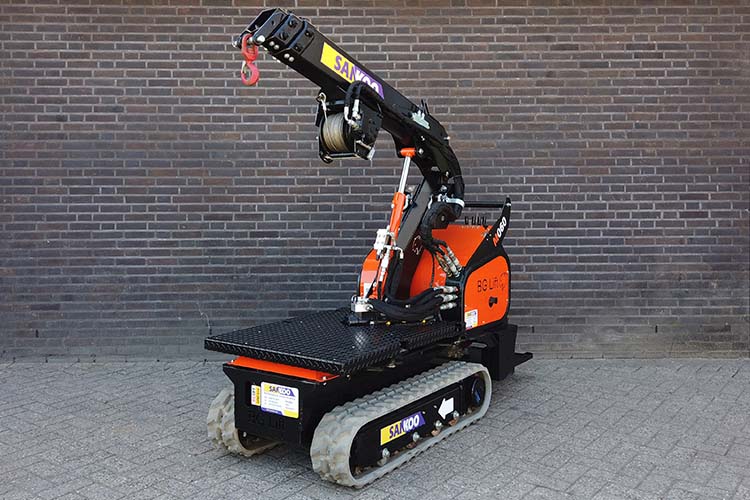

Bg Lift M060 Mini Crane
The Bg Lift M060 is the most compact mini crane from Bg Lift. Easily transported in a company van or with a BE driving licence, this mini crane is ideal for tight spaces and upper floors.
Dimensions (h×w×l)1.44 × 0.78 × 1.78 m
Weight720 kg + 200 kg ballast
Lifting capacity580 kg
Max. lifting height 4.25 m
Horizontal reach3.01 m
From € 29.500,-excl. VAT
€ 35.695,- incl. VAT
Downloads
Standard specifications Bg Lift M060
Standard equipment
- Radio-controlled remote with display for driving and crane operations
- Hydraulically extendable black tracks
- 50° swivel range (25° + 25°)
- Electro-hydraulic load limiter
- Complies with EN 13000 standard
Optional equipment
- White, non-marking tracks
- Hydraulic 500 kg winch
- 230 V electric motor
- 2 LED lights, 1 on the main boom, 1 on the jib
- 1 LED light on the main boom
Small Masterpiece
The Bg Lift M060 mini crane is a true masterpiece of engineering and design. Thanks to its compact construction, it is easily transported and ideal for use in confined spaces. The crane can move while lifting, features a slew range of 50°, and is suitable for use on upper floors.
Compact & Powerful
This mini crane provides a maximum lifting capacity of 580 kg, a maximum lifting height of 4.25 meters, and a horizontal reach of 3.01 meters. Ideal for a wide range of lifting tasks in tight locations. The lightweight build enables easy transport.
WIDE RANGE
TOP BRANDS
GOOD SERVICE

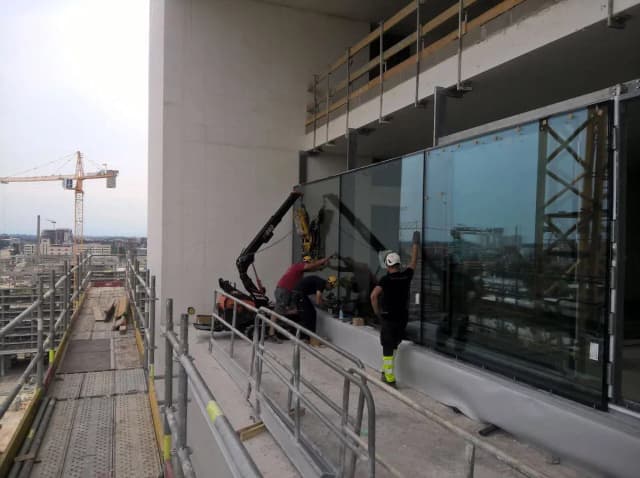

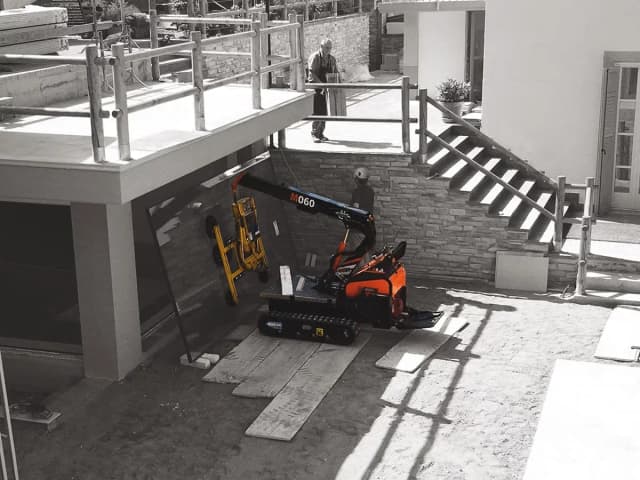

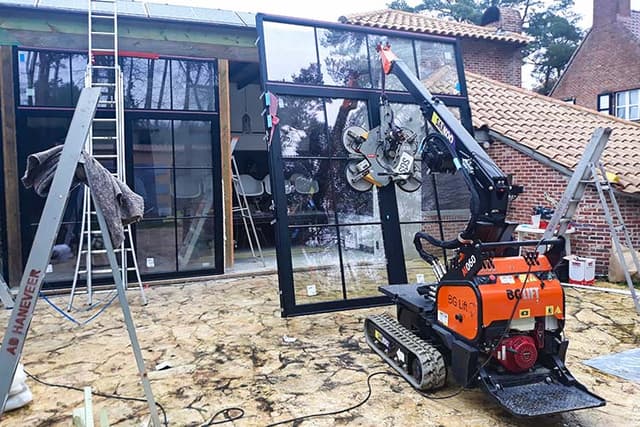

BG Lift M060 mini crane in action
See how the BG Lift M060 mini crane performs compact lifting tasks in tight spaces with impressive capacity and flexibility.
