Avant 500 Compact loaders

Description

SAME LOADER PERFORMS ALL THE TASKS

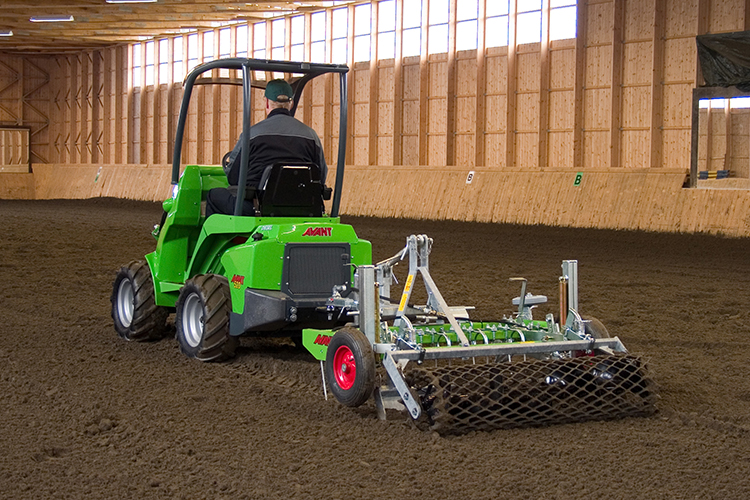

With over 190 attachments Avant is a loader which is very easy and flexible to change into all kinds of works. Changing attachment is very fast and simple. So, with the same loader You can perform all kinds of work just by changing the attachment.

LOW OPERATING COSTS
Compact and articulated loader consumes remarkably little fuel and in normal use it is possible to get under 3 l/h consumption with 500-series loaders. Due to the articulated structure also the consumption of the tires is minimalistic.

LOW MAINTENANCE

Simple and transparent construction and high quality components reduce significantly the need of maintanance. Low amount of electronics and the use of well-known components reduce the price of maintenance.

COMPACT AND STRONG CONSTRUCTION
Avant loaders have been tested in the colds of Antarktis as well as in the burning heats of Middle East. Strong experience and test in all kinds of working conditions ensure that the loader will last unbreakable in different kinds of heavy duty working conditions and construction areas.

PROPERTIES ON A RIGHT SCALE
500 series loaders are medium size of all Avant loaders. 500 series loaders suit well for a wide range of customer segments because the machine is top class in power-to-weight compared to its price. 500-Series compact dimensions and agile movement allow working in a large variety of environments.

SPEED AND PULLING FORCE
The speed of AVANT 523 and 528 is 12 km/h, which is enough while working in smaller areas or construction site.

Avant 530 is a double speed model (9/19 km/h).

EXCELLENT TECHNOLOGY
Avant 500 series stepless hydrostatic drive ensures a pleasurable driving experience for a driver after a driver. Service points are easily accessible. On the whole, the 500 series loader in a comfortable partner as well with the driving as with the maintenance. The versatility of the loader and a large variety of comfortable options makes the AVANT 500 Series a right choice for many different customers.

Specifications – AVANT 523

lifting capacity
800
kg

ENGINE POWER
22
hp Diesel

LIFT HEIGHT
2.8
m

Speed
12
km/h

  • Engine: Kubota D902
  • Power: 16 kW (22 hp)
  • Fuel: Diesel
  • Length: 2440 mm
  • Width (with standard tires): 1130 mm
  • Height (with standard tires): 1990 mm
  • Weight: 1200 + 170 kg
  • Standard tires: 23×10.50-12
  • Transmission, drive: hydrostatic
  • Tensile force: 900 kp
  • Max. Speed: 12 km / h
  • Oil supply, additional hydraulic function / pressure: 34 l / min 185 bar
  • Turning circle: (inner / outer) 995/2050 mm
  • Max. lifting height: 2790 mm
  • Tipping load: 800 kg
  • Max. breakout load: 1100 kg

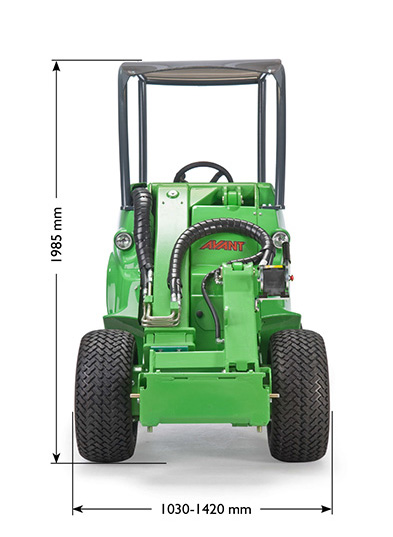

Dimensions

Specifications – AVANT 528

lifting capacity
950
kg

ENGINE POWER
26
hp diesel

LIFT HEIGHT
2.8
m

Speed
12
km/h

  • Engine: Kubota D1105
  • Power: 19 kW (26 hp)
  • Fuel: Diesel
  • Length: 2550 mm
  • Width: See table
  • Height: 1980 mm
  • Weight: 1250 + 170 kg
  • Standard tires: 23×10.50-12 traction / grass
  • Transmission, drive: hydrostatic
  • Traction: 950 kp
  • Speed: max. 12 km / h
  • Oil supply extra: 36 l / min 200 bar
  • Turning circle inside / outside: 995/2050 mm
  • Max. lifting height: 2790 mm
  • Tipping load: 950 kg
  • Max. breakout load (50 cm): 1250 kg

Dimensions

Specifications – AVANT 530

lifting capacity
950
kg

ENGINE POWER
26
hp diesel

LIFT HEIGHT
2.8
m

Speed
19
km/h

  • Engine: Kubota D1105
  • Engine power: (ISO Gross) 19 kW (26 hp)
  • Fuel: Diesel
  • Length: 2550 mm
  • Width: see table
  • Height (with standard tires): 1985 mm
  • Weight: 1250 + 170 kg
  • Standard tires: 23×10.50-12 ”TR
  • Transmission, drive: hydrostatic
  • Tensile force: 1050 kp
  • Speed max .: 9/19 km / h (2 speeds)
  • Oil supply extra hydraulic function: 36 l / min 200 bar
  • Turning circle inside / outside: 995/2050 mm
  • Lifting height: 2790 mm
  • Tipping load: 950 kg
  • Max. breakout load: (50 cm) 1250 kg

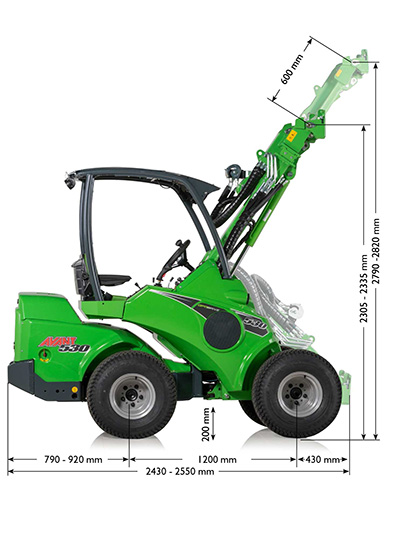

Dimensions

The Avant 500 is:
\
Safe
\
Very economical
\
Excellent visibility
\
Cost saving
