Platform Basket 33.15Spider aerial work platform
The Platform Basket Spider 33.15 is an articulated lift with telescopic arms with impressive ground clearance to overcome obstacles and a design delivering excellent performance.

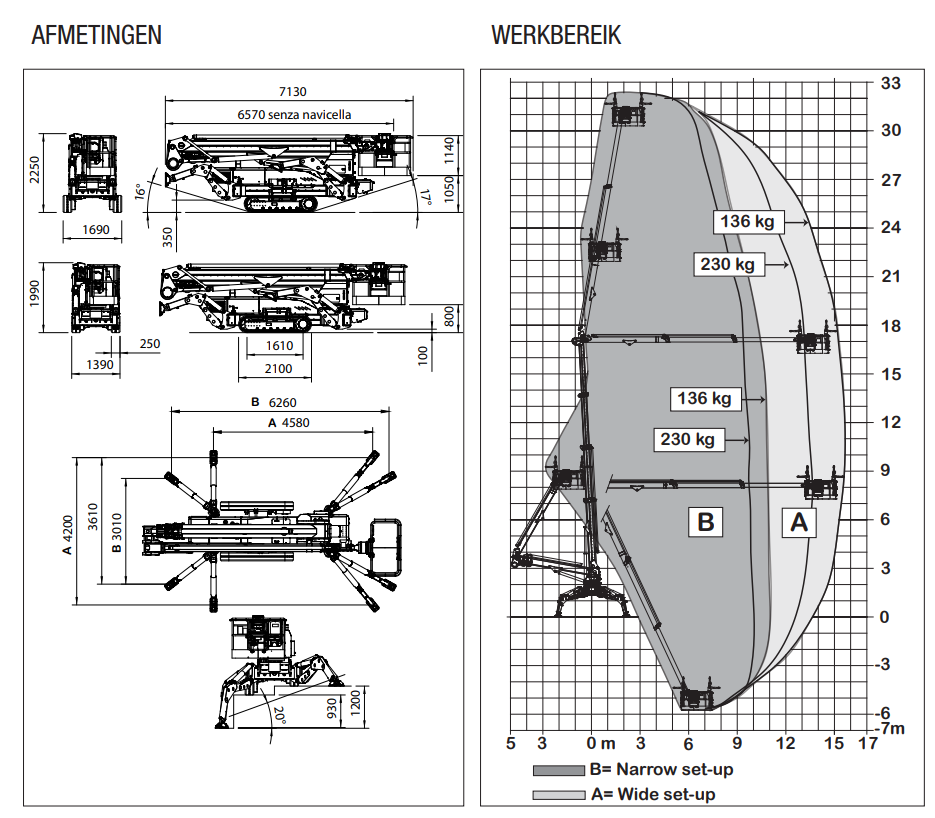

Dimensions (h×w×l)2.19 x 1.39 x 7.13
Working height32.4 m.png&w=64&q=75){kind=small}
Horizontal reach15.6 m
Basket capacity230 kg
Weight6,500 kgDownloads
Standard specifications Platform Basket 33.15
Standard equipment
- 2-person work platform 163 x 87 cm
- Jib +/- 45°
- Air and water connections to work platform
- Hydraulically extendable black tracks
- Automatic leveling
- Rotatable work platform 90° + 90°.
Optional equipment
- White, non-marking tracks
- 250 kg winch
- Electric emergency pump
- Large stabilizer plates 85 x 34 cm
- Custom color

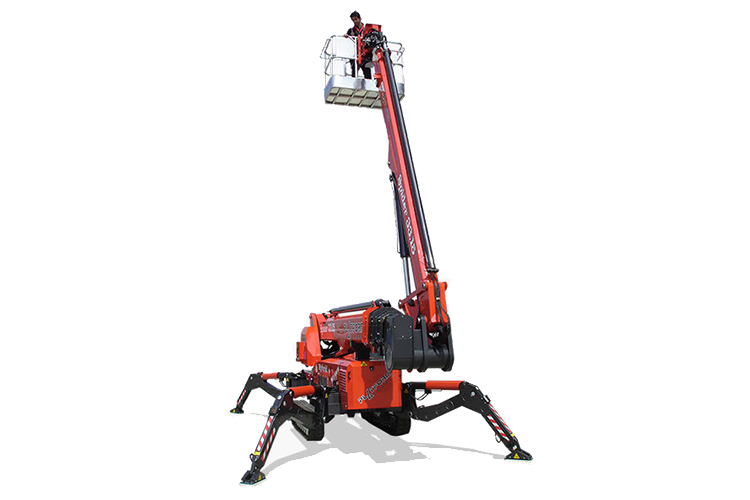

Ultimate performance and mobility
The Platform Basket Spider 33.15 features an extendable crawler chassis with an exclusive Platform Basket system, improving mobility in wide position and lowering height in narrow mode. This telescopic spider lift offers a 33 meter working height and 15 meter outreach. Its compact design maximizes usability in tight and complex worksites.
Reliable power and design
Powered by a strong and reliable 3-cylinder water-cooled Kubota diesel engine, together with a single-phase 380-volt electric motor, the Platform Basket 33.15 delivers outstanding performance. With a rotatable work basket and extendable tracks, this spider aerial platform is highly compact and maneuverable, even in the tightest spaces.
