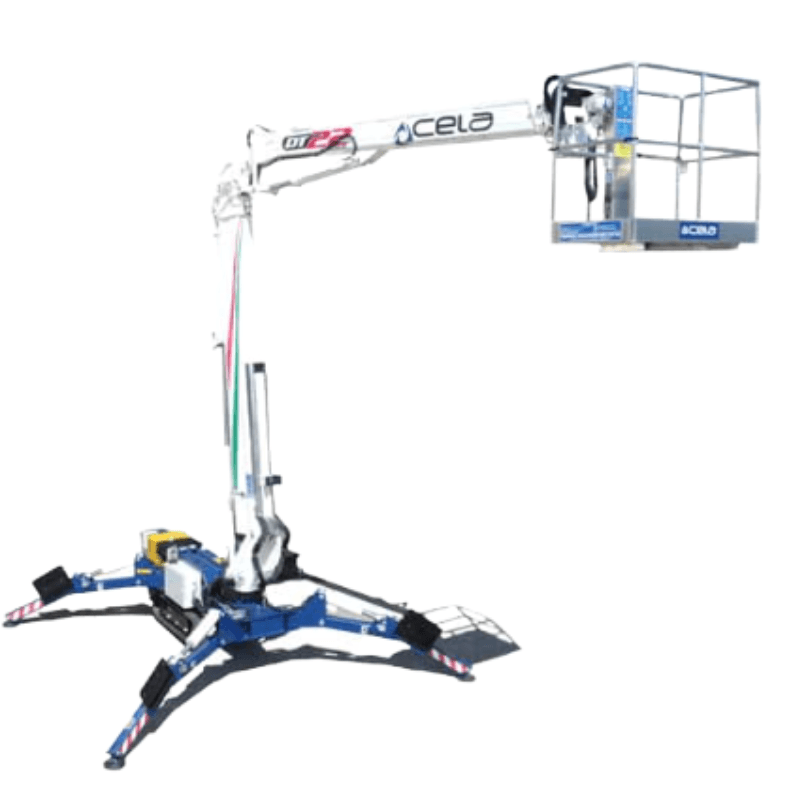

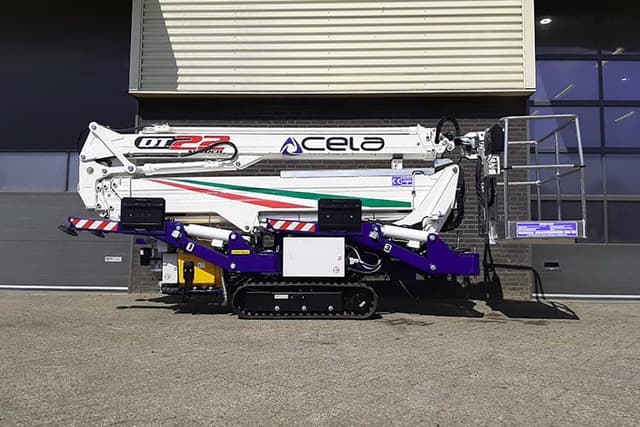

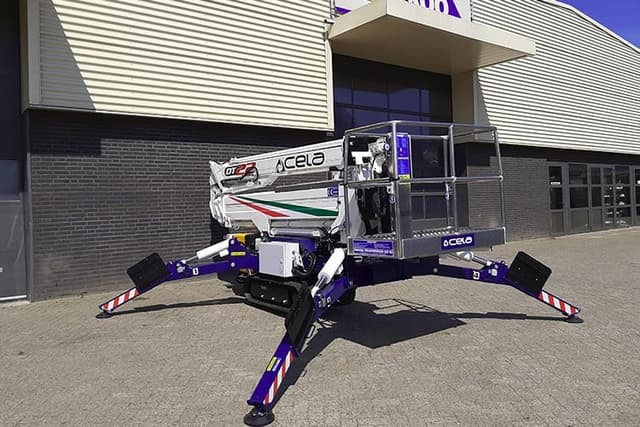

Cela DT Crawler 22 Spider aerial work platform
The spider crawler aerial work platforms from Cela provide the ideal solution for working at height.

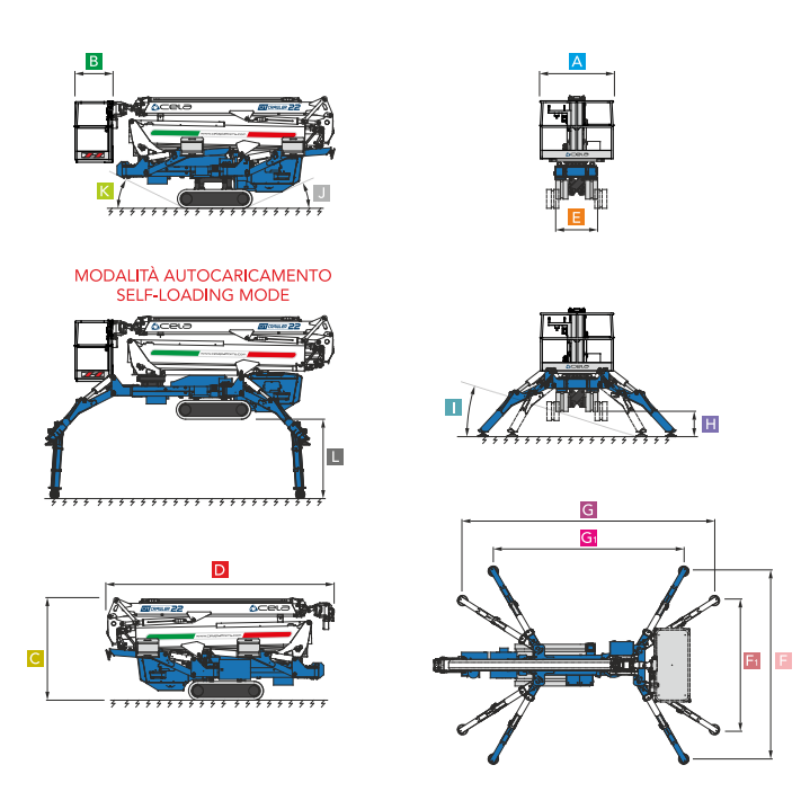

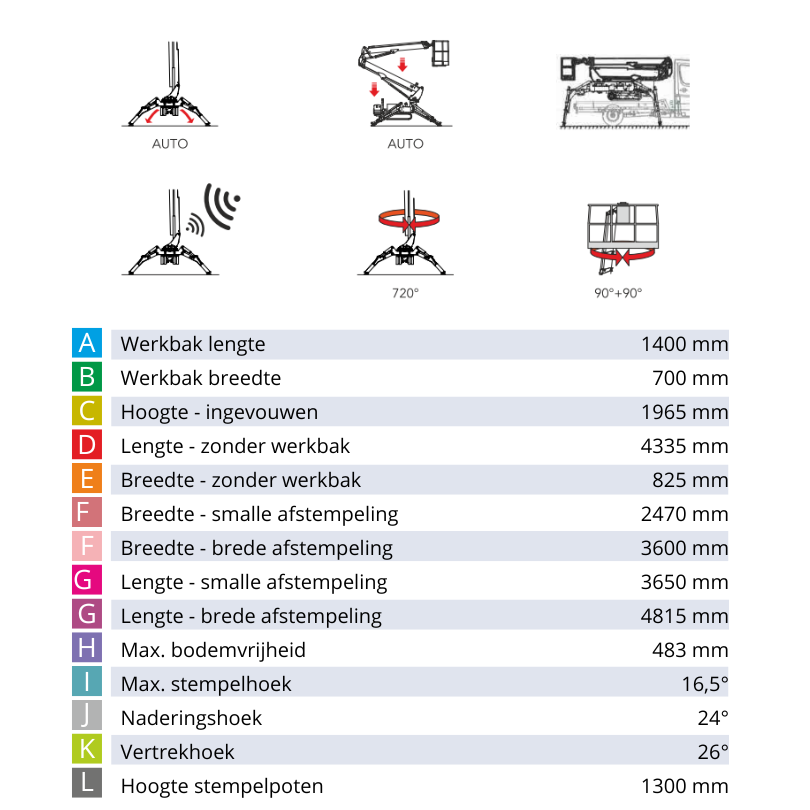

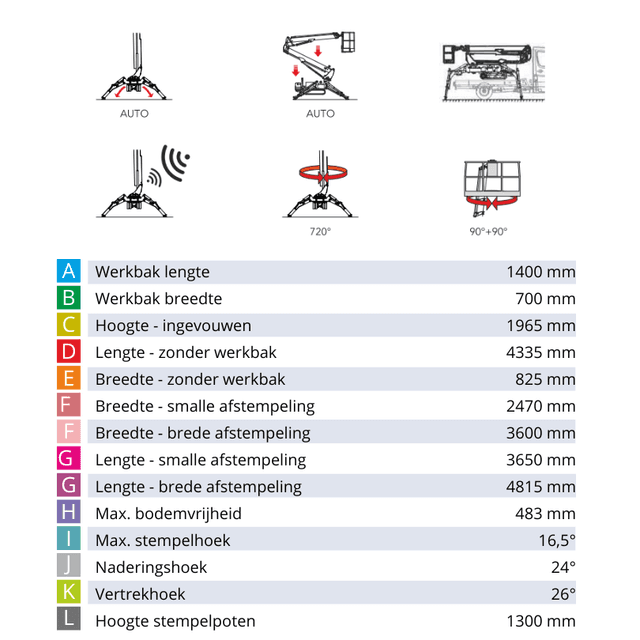

Dimensions (h×w×l)1.96 × 0.82 × 4.33 m

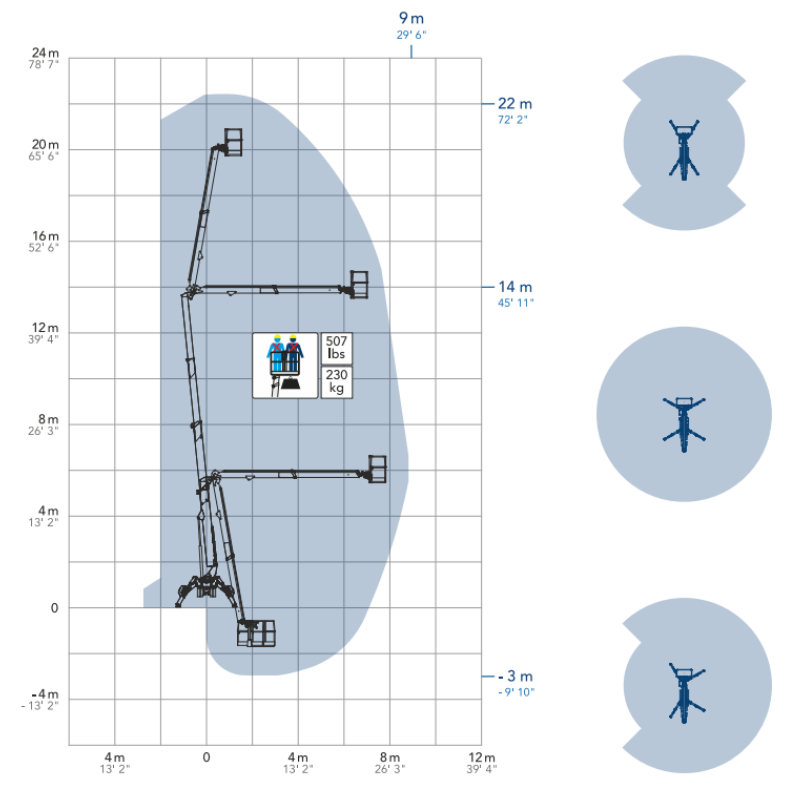

Working height22 m.png&w=64&q=75){kind=small}
Horizontal reach9 m
Working range (below ground)-3 m
Weight2,800 kg
From € 83.500,-excl. VAT
€ 101.035,- incl. VAT
Standaarduitvoering Cela DT Crawler 22
Standard equipment
- Afneembare alu. werkbak 140x70x110 cm
- Hydraulisch verbreedbare rupsen
- 230 Volt elektrische aansluiting in de werkbak
- Radiografische afstandsbediening
- Werkbak 180° zwenkbaar (90° links + 90° rechts)
- Automatisch nivelleren
Optional equipment
- Anti-dust brushes on the main boom
- Monitoring system
- Lithium version
- Removable aluminum work platform 1800mm (instead of 1400mm)
- Single-seater aluminum cage 700 mm

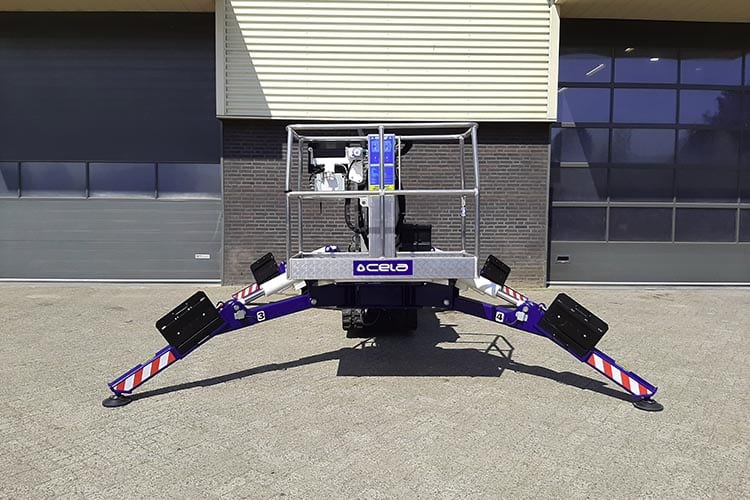

Unmatched possibilities

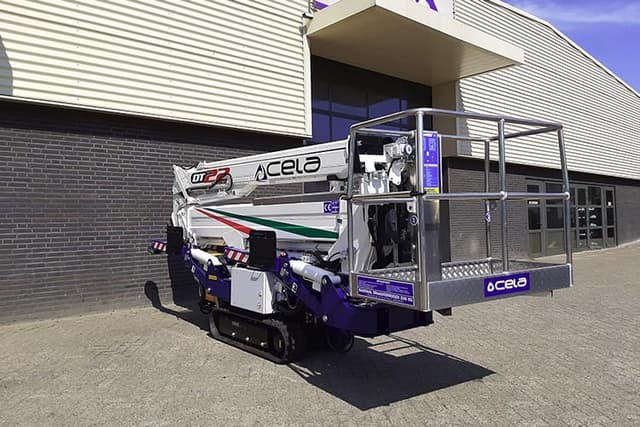

The Cela DT Crawler 22 is a unique concept with unmatched possibilities! The transport length is 4.32 meters and the passage width is only 0.80 meters. With a weight of just 2,800 kg, this aerial platform can be easily transported on a trailer. This makes the Cela DT Crawler 22 a sought-after machine for cavity wall insulation companies.

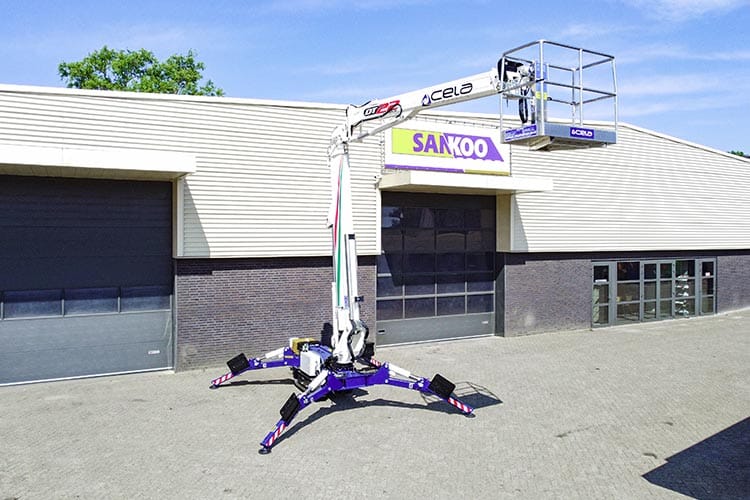

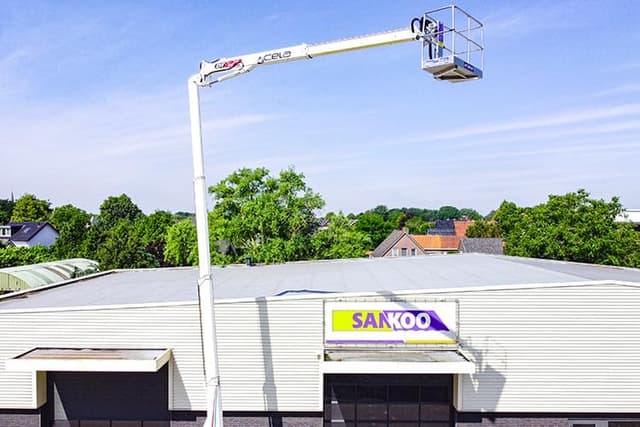

Double telescopic construction
Thanks to the double telescopic construction, the Cela DT Crawler 22 offers greater outreach than ever before. The hinge point of the upper and lower mast is at 14.00 meters. The mast design is robust and thus ensures high stability and working comfort. The Cela DT Crawler 22 comes with water, air, and electricity supply to the platform, neatly integrated into the mast.
