Max. 1.200 kg

8 Suction units

360°

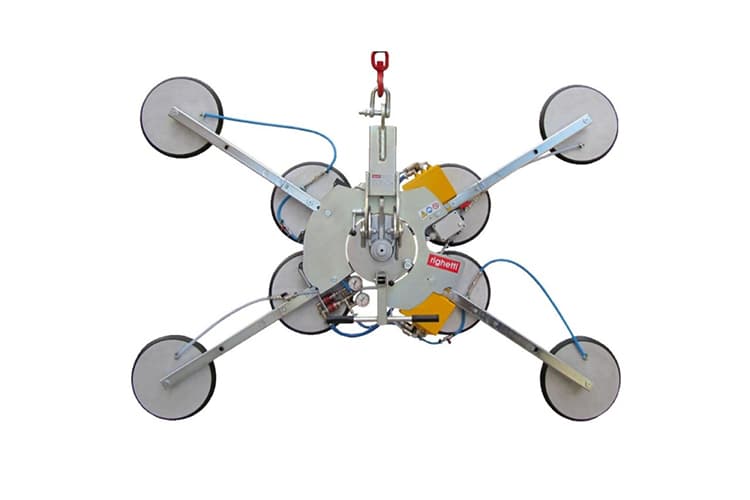

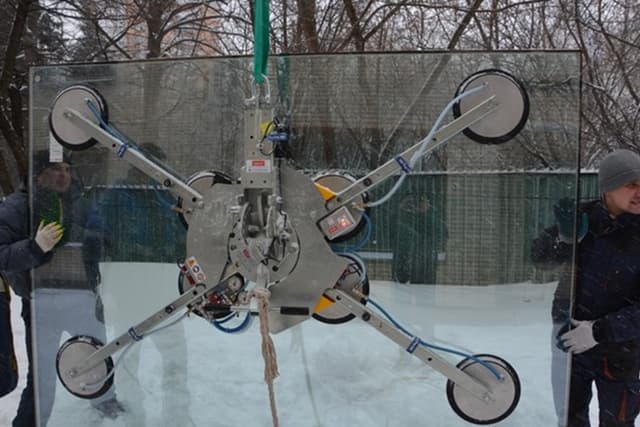

Righetti VB4+4 RCMBM D4 Glass vacuum lifter

Specifications

  • lifting capacity 600 / 1200 kg
  • battery operating system
  • 4 fixed suction pads d.390 mm + 4 suction pads on extension pad arms
  • manual 90° tilt with automatic stop
  • manual 360° rotation, with possibility of automatic stop or continues rotation

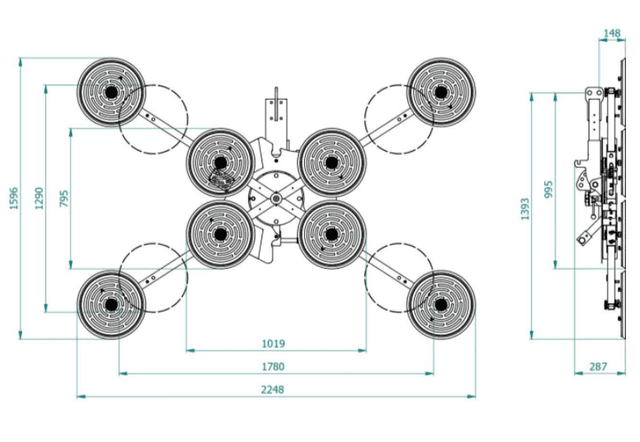

  • pad spread in 4 pads configuration mm 1020×795
  • pad spread in 8 pads configuration mm 1780×1290 / mm 2250×1600
  • dual vacuum circuit EN13155

Description

The VB4+4 RCMBMd4 is one of our best selling vacuum lifter.
On VB4+4 model, the external suction pads are on removable extension arms that permit to increase the lifting capacity and the pad spread.
The pad arms may be removed quickly and easily.
In configuration with 4 pads, the lifting capacity is 600 kg and is possibe to lift small glass panels.
With addition of four extension pad arms, the lifting capacity increase to 1200 kg.

The VB4+4 RCMBM vacuum lifter features manual tilt and manual 360 degree rotation with possibility of automatic stop or continues rotation. Its compact and flat design permit that VB4+4 could work also behind scaffoldings. Vacuum glass lifter VB4+4 RCMBMd4 is battery powered by rechargeable batteries that, if necessary, may be easily removed and quickly replaced.

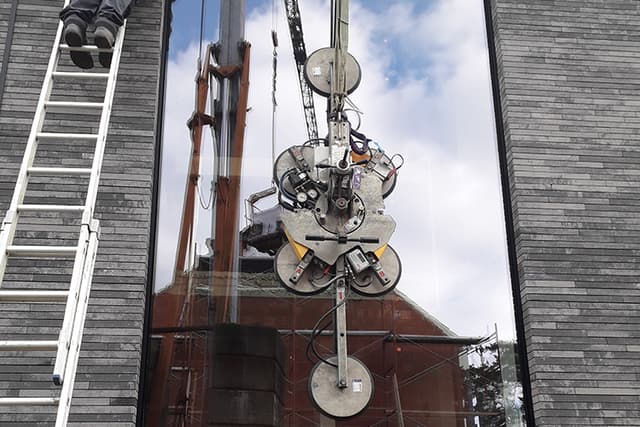

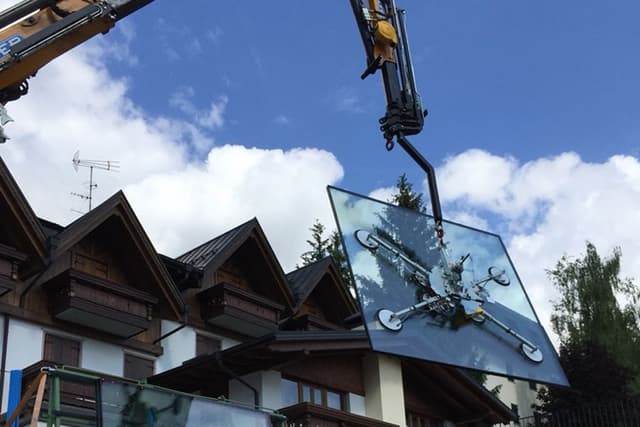

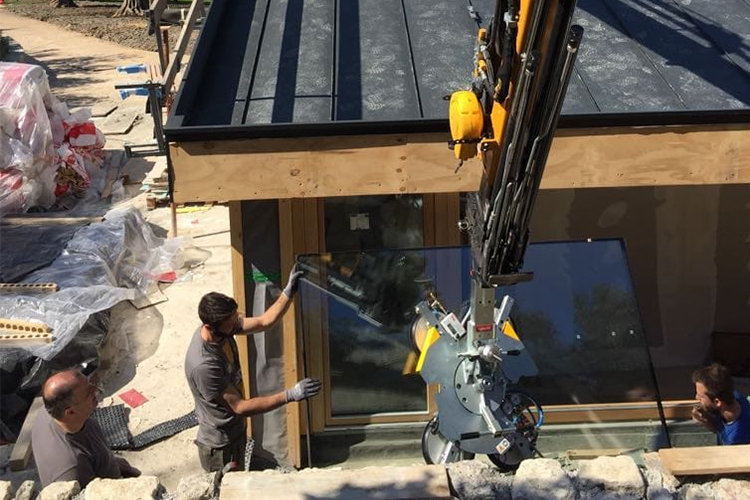

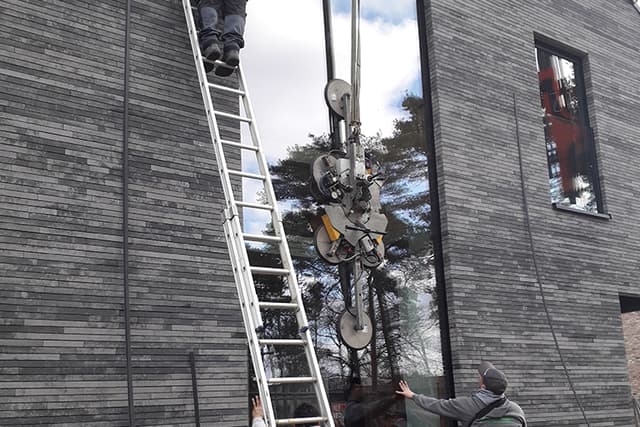

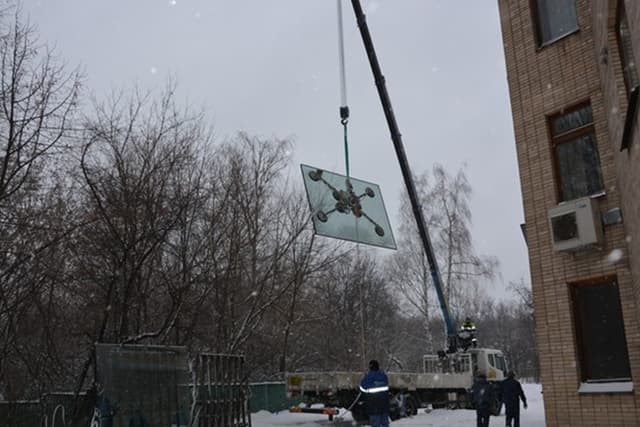

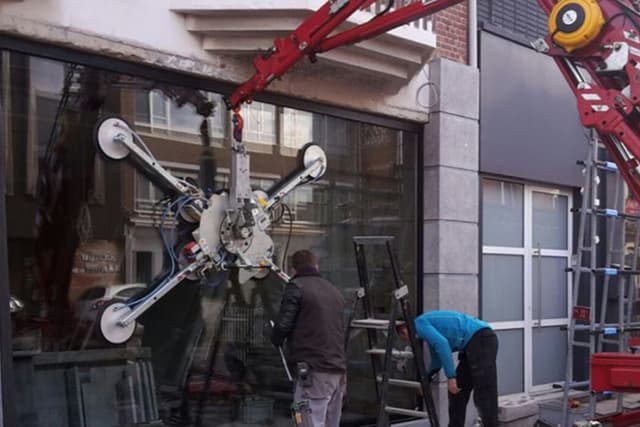

VB4+4 RCMBM is specific vacuum glass lifter for construction site use with dual vacuum circuit according to EN13155.
